Technical Specifications
| Sr No. | Parameter | Specification |
|---|---|---|
| 1 | Minimum Detectable Leak | 5 × 10⁻¹² mbar·l/s |
| 2 | Measurement Range | 1 × 10⁻¹ to 1 × 10⁻¹¹ mbar·l/s |
| 3 | Tracer Gas | He⁴, He³, H₂ |
| 4 | Response Time | ≤ 2 seconds |
| 5 | Start-up Time | ≤ 5 minutes |
| 6 | Max Test Port Pressure | 15 mbar (default), 25 mbar |
| 7 | Backing Pump | EDWARDS nXDS15i |
| 8 | Turbo Molecular Pump | Leybold TURBOVAC 90i |
| 9 | Wireless Handheld Device | Optional |
| 10 | Automatic Switches | Yes |
| 11 | Dimensions | 645 × 678 × 965 mm |

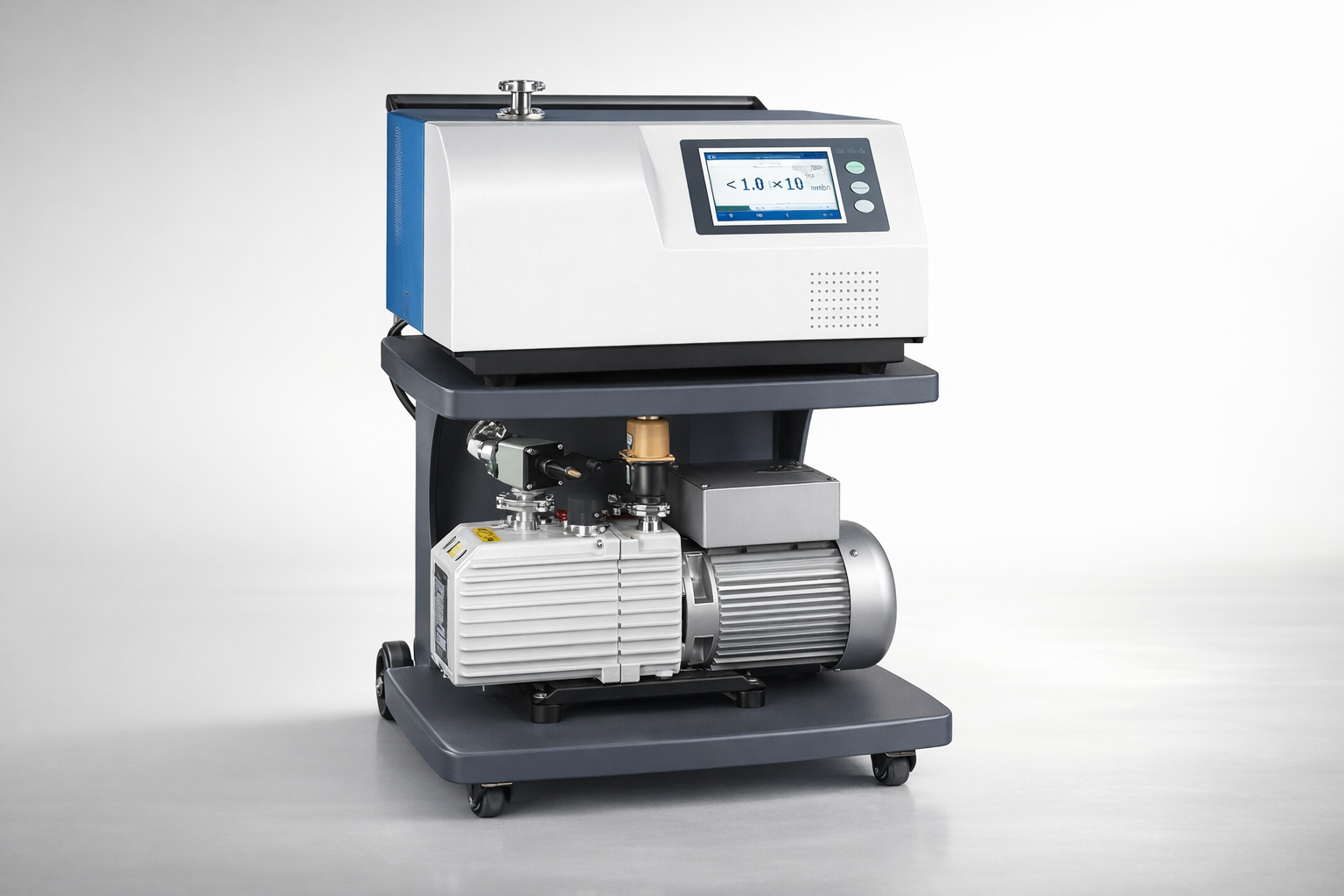

Fourvac Technologies presents its newly developed, state-of-the-art Helium Leak Detector, engineered for fast, accurate, and highly sensitive leak detection in high and ultra-high vacuum applications. Designed for both evacuated and helium-pressurized components, the system delivers precise quantitative measurements with exceptional reliability. Leak indications are displayed on a high-resolution LCD with bar graph visualization, supported by an audible alarm for instant feedback. The portable design and flexible probe allow convenient access to small and hard-to-reach leak points. Compared to conventional methods such as soap bubble testing, pressure decay, or halogen detection, helium mass spectrometry provides significantly higher sensitivity and faster response.
Using helium a non-toxic, inert, and non-destructive tracer gas ensures safe and contamination-free testing. The system also supports alternative tracer gases by adjusting polarity settings. With a minimum detectable leak rate of 5 × 10⁻¹² mbar·l/s, Fourvac offers an economical and highly accurate leak detection solution. Available for both direct purchase and professional on-site leak detection services.
